Asbestos Roofing

Any roofing material containing asbestos fibres. Typically produced in corrugated sheets, imitation slates or imitation shingles. Banned as a new construction material since around 2000 in most countries.

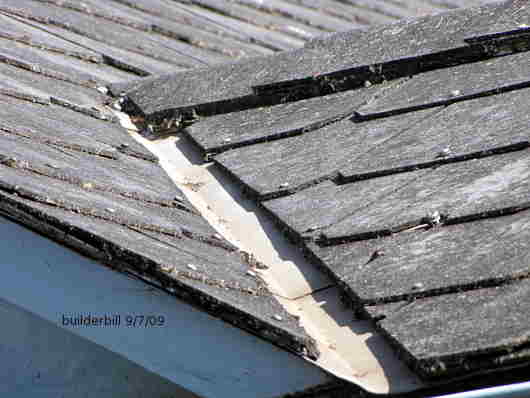

Imitation slate, tiles or shingles roof, containing asbestos material. Fixed on a 1950's era house in Australia. But for the house being a heritage listed, this roofing would have been removed long ago.

The individual tiles are approximately 10 thick by 200 x 200. (The part seen). The purpose made ridge and hip flashing are also asbestos containing products.

Hardies Super Six roof sheeting, also showing the asbestos containing hip and ridge flashing and a ridge vent.

Another category of roofing that contains asbestos are thinner, say 3mm thick sheets that were made out of asbestos reinforced vinyl sheets of similar size and appearance to composition shingles. These were typically made and fixed with a diamond pattern.
