The gem Expansion Joint & Control joint System, designed and developed for builders, by a builder, Joe Borg.

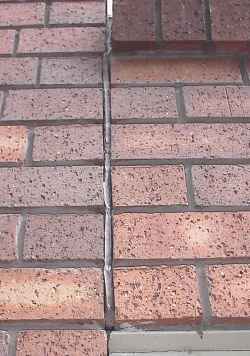

Gem expansion joint - A dried out mastic joint.  Not doing it's job any more.

The Gem Expansion and Control Joint System is faster and cheaper to apply, with a finish far superior to the messy foam and mastic method.

The Gem system is not only more effective and cost efficient, but greatly enhances the appearance of the finished joint, helping to avoid unnecessary and expensive callbacks by concerned owners.

Designed to meet the demands of the various expansion and control joints in both masonry and timber buildings, the Gem system basically consists of a control joint casing and cover strap, both manufactured from extruded, flexible, polypropylene.

The casing is tied in to the mortar beds with a specifically designed horizontal expansion tie. The multi stage 'snap in' cover strap (applied after acid clean), is UV resistant, available in limited colours and can be painted.

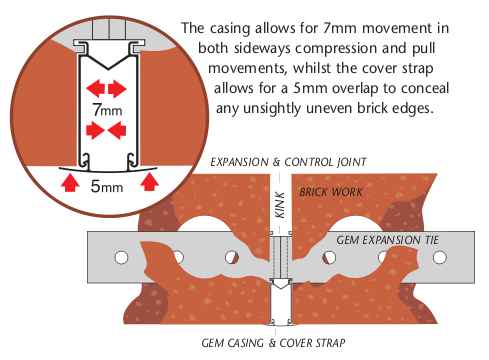

Gem expansion joint - Sketch of the system showing the parts of the control joint and also a Gem expansion tie.

The Gem Expansion & Control Joint System can be used with any size brick or blockwork, by simply adjusting the vertical position of the expansion tie.

Once in position, the spring -back design of the Gem casing allows for both sideways compressive and pull movement . The adjustable expansion tie secures the casing by allowing it to move in both sideways compression and spring back, maintaining the integrity of the casing vertically, whilst in a sideways movement.

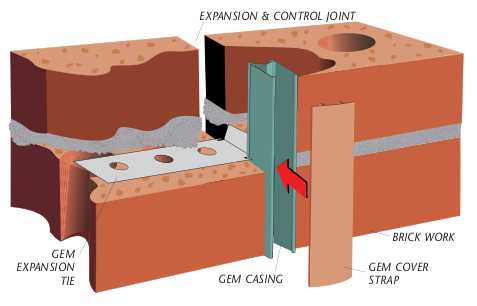

Gem expansion joint - The Gem casing and cover strap detail.

With building surveyors now paying closer attention to the specifications of expansion control joints (minimum 10mm gap), there is a need to improve the current system.

Gem expansion joint - An example of a neat control joint in brickwork

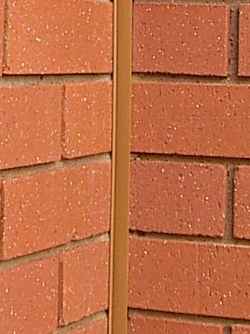

Gem expansion joint - A neat corner expansion joint in brickwork

Gem expansion joint - A control joint in a corner around a brick sill.

The Gem system not only meets all building requirements, but provides fail-safe easy installation, is cost efficient and pleasing to the eye.

The Gem single cover strap unit is designed to cater for new or existing buildings, including timber constructions.  This simple unit will provide the same neat finish to existing standard 10mm expansion and control joints, with or without foam.

Advantages of The Expansion & Control Joint:

• Time saving for builder.
• 1. No time spent filling joints with mastic.
  2. No time wasting call backs.
  3. No additional time for bricklayer, takes same time to install as foam.
• Allows for the long term expansion (the "e factor") of clay bricks.
• Medium load transfer from brick window/door frame.
• Conceals movement behind cover strap up to 5mm.
• The one casing does 4 profiles:
• 1. Butt joints.
  2. Corner joints (including octagonal).
  3. Beside windows.
  4. Beside door openings.
• Multi stage cover strap suits brick, block and render work, is UV resistant, paintable and prevents water and insect penetration.
• The cover strap can also be used for concealing security wires.
• Both the casing/cover strap combinations and the single cover strap unit are sold in convenient 2.7 meter lengths.

Invented by Joseph Borg
