Demolition Breaker

A type of impact breaker using electric power. In the larger sizes also known as an electric jackhammer.

Pavement Breaker, Petrol

A full size pavement breaker of jackhammer that uses standard tools that is powered by a petrol engine.

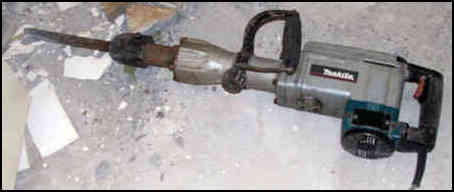

A Makita demolition breaker

The breaker above I used for quite a long time. It is adequate for breaking up small sections of concrete and it is just about on the upper size limit of machines that can be used horizontally for cutting holes in walls. Where I live we use quite a lot of precast concrete walls and core-filled 200 series blockwork so a machine like this with plenty on power was good on many jobs.

Often when working on walls it was hung from a rope thrown around a rafter or ceiling joist to take the main weight of the machine.

A large Bosch Brute breaker that uses standard jackhammer tools

The large Bosch above was called in to break up a heavily reinforced really hard bathroom floor. A few hours work that did not warrant the hire of an air compressor/jackhammer combination, but at the same time it was just too hard for the Makita above.

One of the larger rotary hammer drills Photo thanks to Wikimedia Commons, User: Thiemo Schuff

The machine above is a large rotary hammer drill that has an adequate weight and punch to be used for taking down sections of masonry walls. Easily hand held by one man.

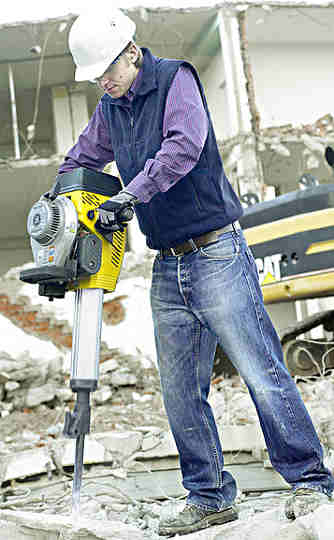

A petrol engine powered pavement breaker Photo thanks to Wikimedia Commons, User: Baumeister

A variation on a theme. Small petrol engines are portable and do not need external power so quite often they are used in preference to the more expensive to hire air compressor/jack hammer combination,
